OVERVIEW

ATV Bridge is a comprehensive value-added service platform which provides extension service, Big Data Service, Internet of Things Service, Public & Private Cloud Deployment for the Operator. The easy to use platform includes:

  • TMS (Theatre Management System): Group Management, Region Management
  • loT System: Device access, Device control order service, Message sending
  • BDC (Big lData Center): Device status, usage log
  • CMS (Content Management System): Video-Live and Video-on-Demand management, App management, App upgrade, offers Widevine DRM/CAS support

Management Key Features

  • The ATV Bridge Admin-Boss-End is for agent management.
  • The ATV Bridge Agent-Boss-End is for tenant management.
  • The ATV Bridge OSS-End is for device management. This is a big data management
    platform where operators can check and set devices’ information.

Dashboard Key Features

  • Activated device analysis
  • Online device analysis
  • Device status analysis
  • Device alarm analysis
  • Device network speed and data transfer analysis

Hardware Specifications

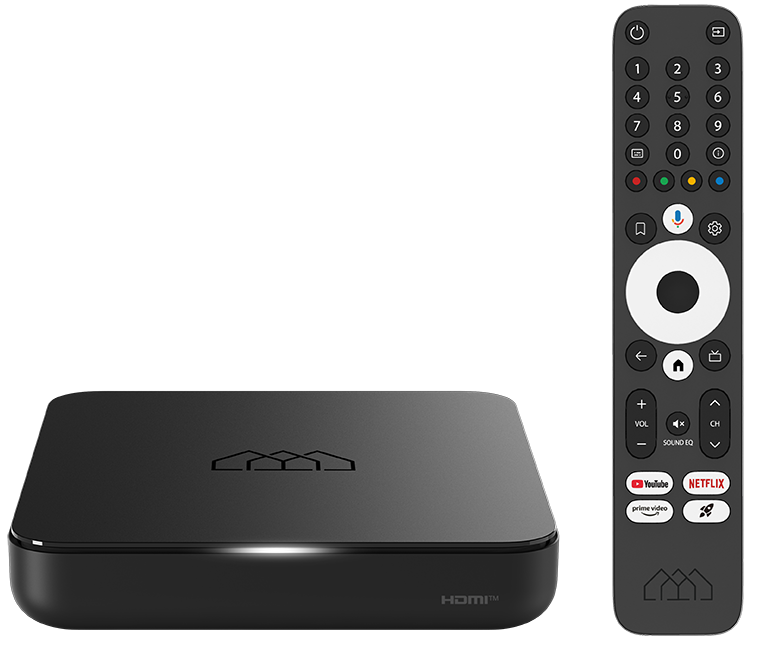

4K Android Streaming Device (4KBR)

Hardware Platform
CPU Chipset:
Amlogic S905x4
DMIPS:
24K DMIPS
GPU:
ARM Mali-G31 MP2
RAM:
2GB LPDDR4
Flash:
eMMC 8GB
Network
Wi-Fi:
802.11 b/g/n/ac
2.4G/5G Wi-Fi 5
Ethernet:
100Mbps
Bluetooth:
Bluetooth 5.0
DRM
Widevine Level:
Supported, Level 1
PlayReady:
Supported, SL3000
Video
Video Decoding
AV1 MP-10@L5.1, VP9 Profile-2, H.265
HEVC MP-10@L5.1, AVS2-P2 Profile,
H.264 AVC HP@L5.1, H.264 MVC, MPEG-4 ASP@L5, WMV/
VC-1 SP/ MP/AP, MPEG-2 MP/HL, MPEG-1 MP/HL, RealVideo 8/9/10
Video Resolution
480i/p, 576i/p, 720p, 1080i/p and 4Kx2K
Video Output
HDMI 2.1, HDCP2.2
Audio
Audio Decoding:
Supports MP3, AAC, WMA, RM, FLAC,
Ogg and programmable with
7.1/5.1 down-mixing
Audio Mode:
Mono/Stereo/Left/Right
Dolby Digital Plus:
Supported
DTS:
Supported (optional)
Interface
LED indicator light, IR Control, Micro SD, HDMI Output, SPDIF, AV Output, Reset Button,
USB Port (1xUSB 2.0, 1xUSB 3.0)
Power Supply
DC Input:
12V / 1A
Power Consumption:
Maximum 12W
Lightning Level:
4KV
RCU
IR Support:
Supported
Protocol:
BLE 5.0
Battery Type:
2 x AAA 1.5V
General
Weight:
< 2lbs
Dimension:
14mm (W) x 114mm (L) x 22mm (H)
Operating Temperature:
0°C – 50°C
Humidity:
< 95%
